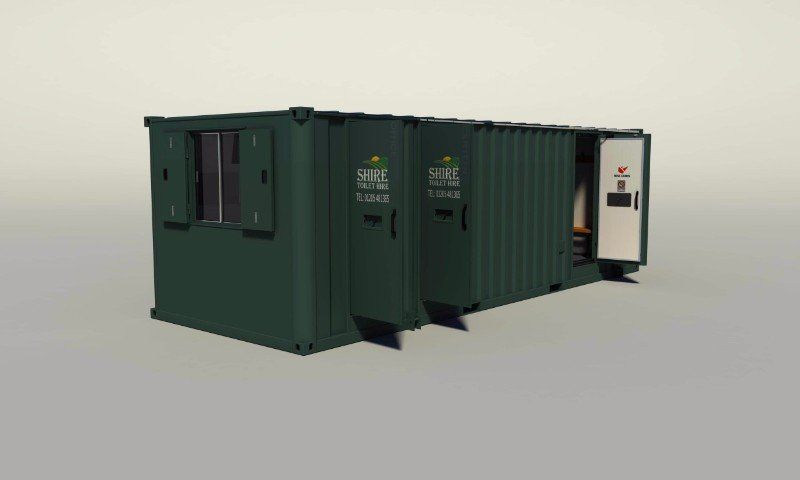

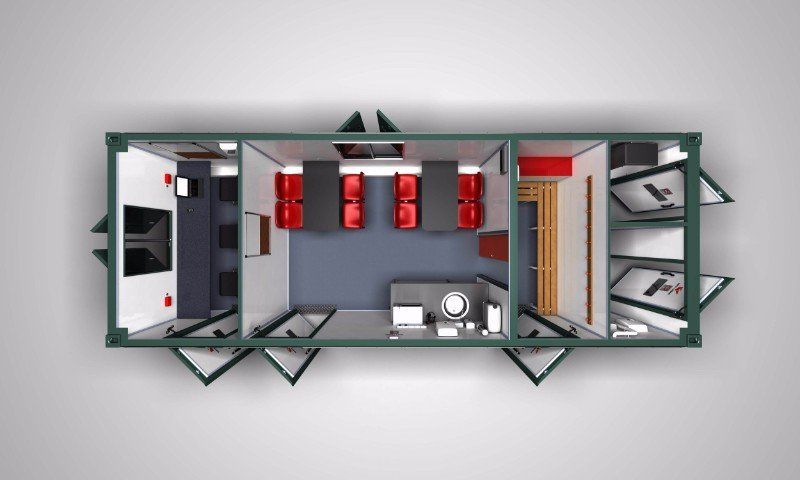

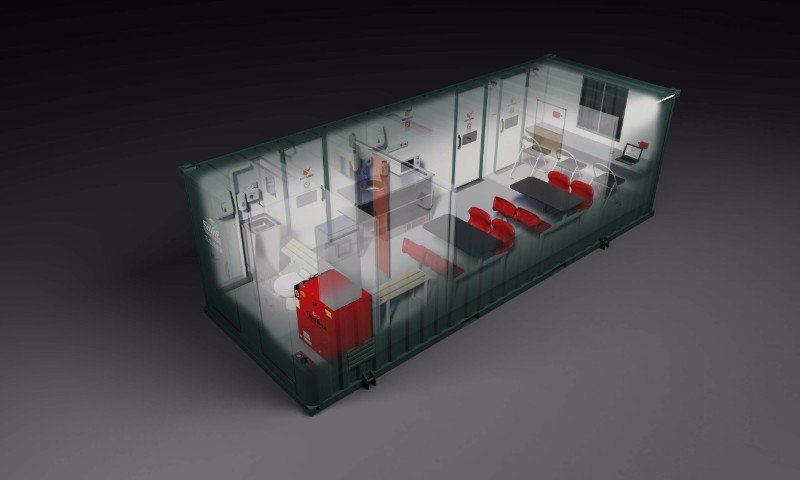

Our state of the art 25x9 Static Hybrid Welfare Units incorporate a modern & green approach to Site Welfare. They include a separate Office, including provision for Printers/Computers, powered through invertor technology. A spacious Canteen area, with adjoining Drying Room, providing welfare facilities such as Heating, Microwave, Kettle, Table & Chairs, Sink & Washing area. The Unit also includes a Fresh Water Micro Flush Toilet, reducing the risk of extra servicing costs to the customer.



What makes it HYBRID? - The Heating, Lighting, Sockets & USB Ports are run via batteries & invertors to reduce generator run time & diesel usage. The generator is designed to automatically start if battery power falls below a given margin. The generator can be manually started during break times. If the unit is used efficiently, it can run on as little as 60p per day in diesel, as opposed to anything up to 200 litres per day using conventional welfare units.



Please see the specification for the 25’ static welfare unit below:





High security doors to: Canteen, Drying room, Office Generator Room & Toilet.

Double glazed windows complete with security shutters (1 x Office, 1 x Canteen)

Magnetic door stays to all doors

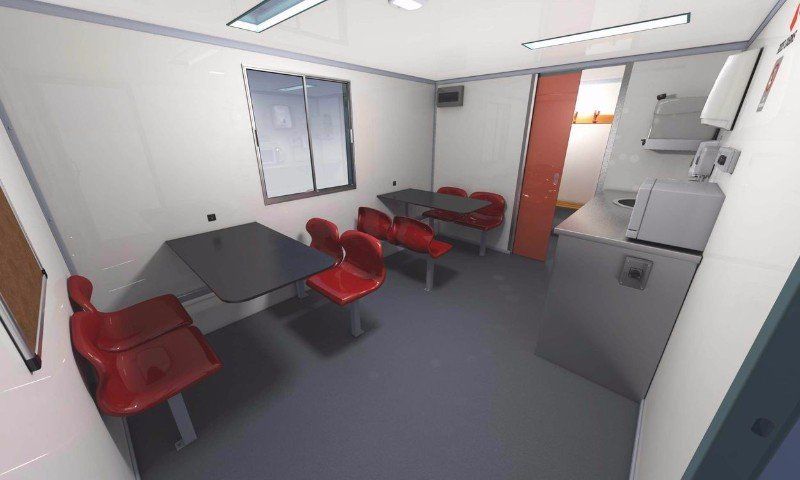

8 man seat configuration with tables - Screw down.

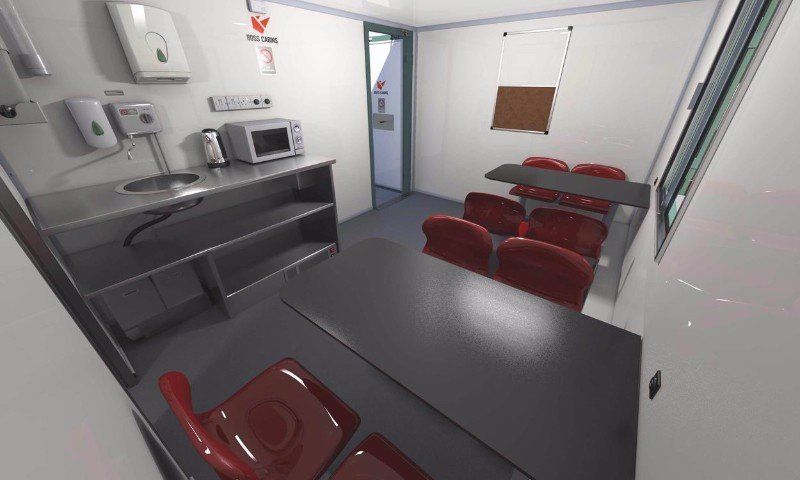

Catering grade Stainless Steel canteen worktop

Cutlery/Mug storage below worktop

Kettle and microwave supplied hardwired.

12V power socket below worktop and space for optional ‘Cool-box’

12V LED lights with PIR sensor

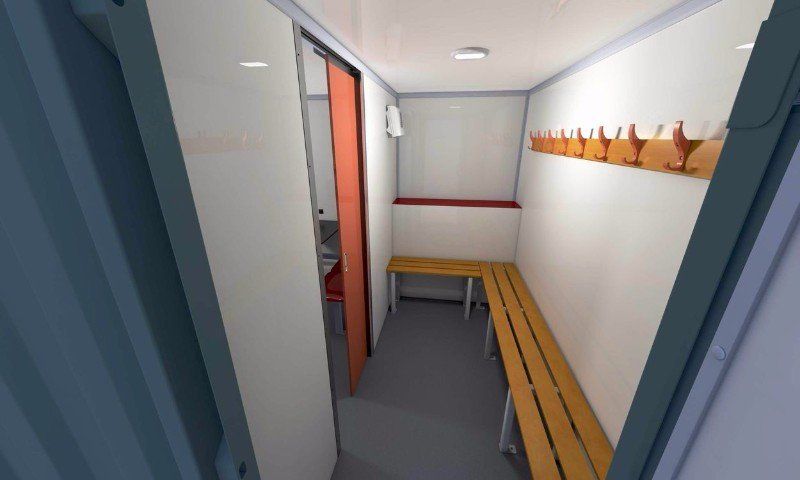

Bench seating - with storage space beneath

Coat hooks x 10

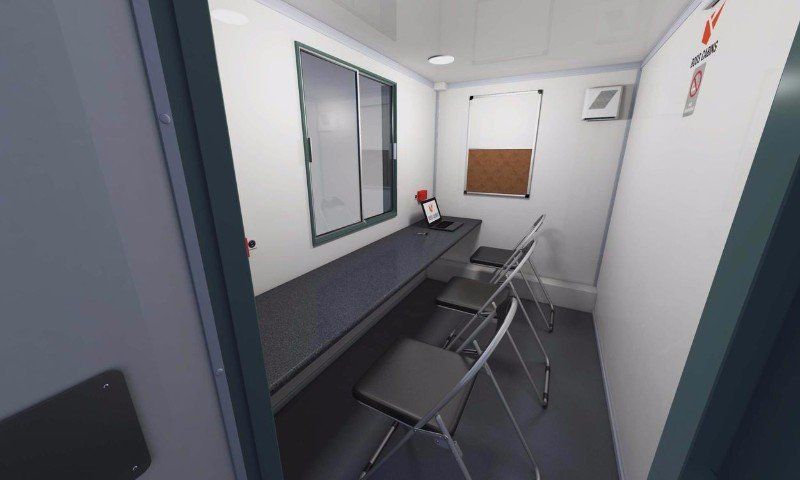

Desk space for 2 mounted to office wall with sockets over.

Fixed partition wall to canteen

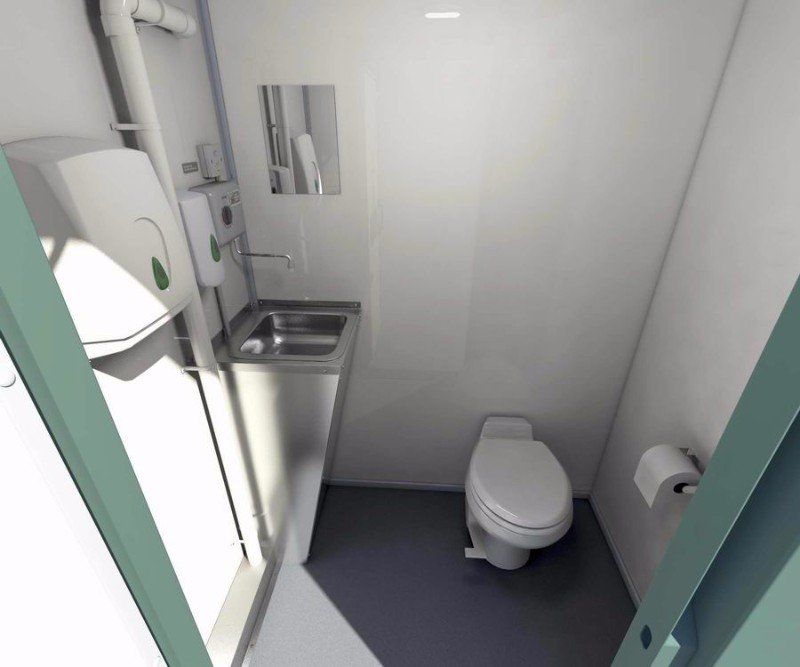

Fresh water toilet (300ml micro flush, 560L fresh tank, 540 litre waste tank)

Sink with hot-wash

12V lighting with PIR sensor

Internal door lock with external emergency release

Soap dispenser

Paper towel dispenser

Toilet roll holder

Mirror





Stainless steel checker plate kick strips to all door thresholds

1 x 1200 x 900mm notice boards (canteen)

1 x Felt notice board (office)

High density foam insulated GRP ‘Wipe-clean’ internal walls and ceiling.







Cabin On/Off Isolator switch

Low level plinth heater

12V LED lighting

12V USB power outlet x 2

500W 230V low power sockets x 2

Battery load shedder

AGM leisure battery

Smart gauge battery monitor- auto generator start up for charging

Webasto 12v diesel heater

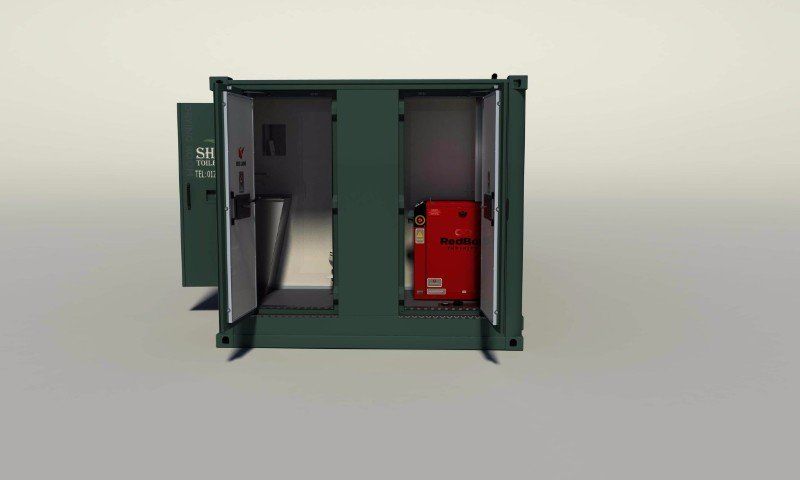

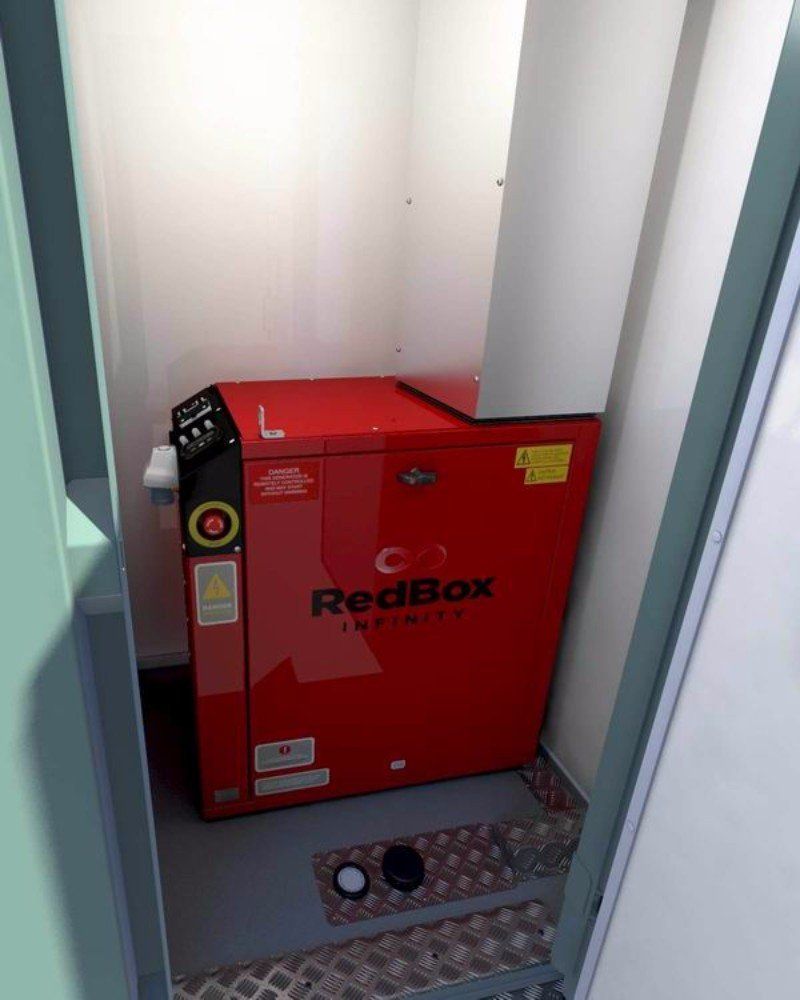

Redbox ‘Infinity’ 6.8kva generator.



Hatz diesel engine with Meccalte alternator.

2000 hours service profile.
